Heavy Parts Group supply a broad range of undercarriage parts for heavy machinery.

HPG undercarriage component range is typically aimed at the 2 to 120 ton market sector providing:
track groups, track link assemblies, track rollers, carry rollers, idlers, sprockets, segments and other undercarriage hardware for excavators, bulldozers and other crawler machinery.

Track Chains

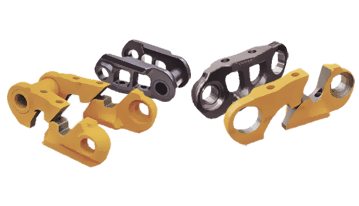

Split Master links

Track Groups

Sprockets & Segments

Bucket Teeth

Idlers

Track Rollers

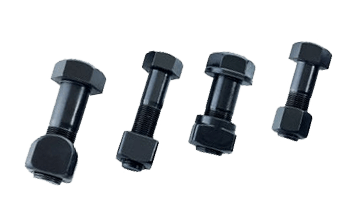

Nuts & Bolts

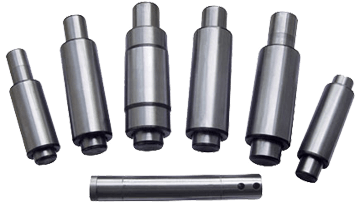

Pins & Bushes

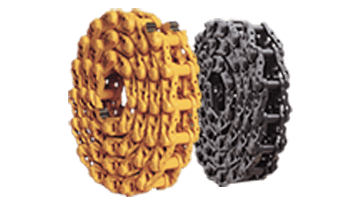

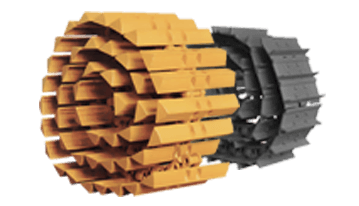

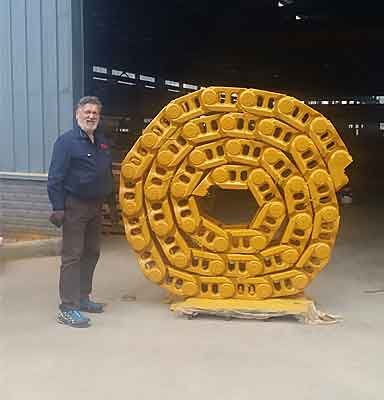

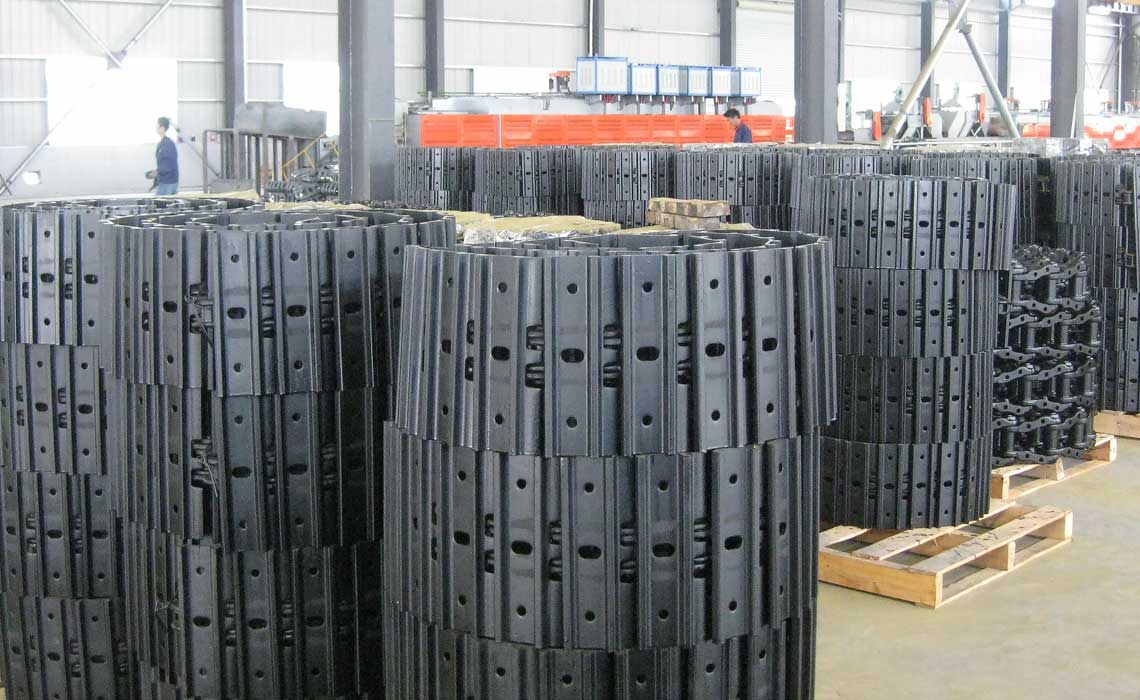

Track Chains

KMF and STF chains are manufactured to suit the smallest chained machines through to 120 ton machines, with link pitches up to 317.5mm. Santer's Sealed Grease Lubricated (SSGL) chain has design features to set it apart from competitors. All chains are forged from boron steels to give longer chain life. Excavator track is warranted for 2000 hours / 12 months.

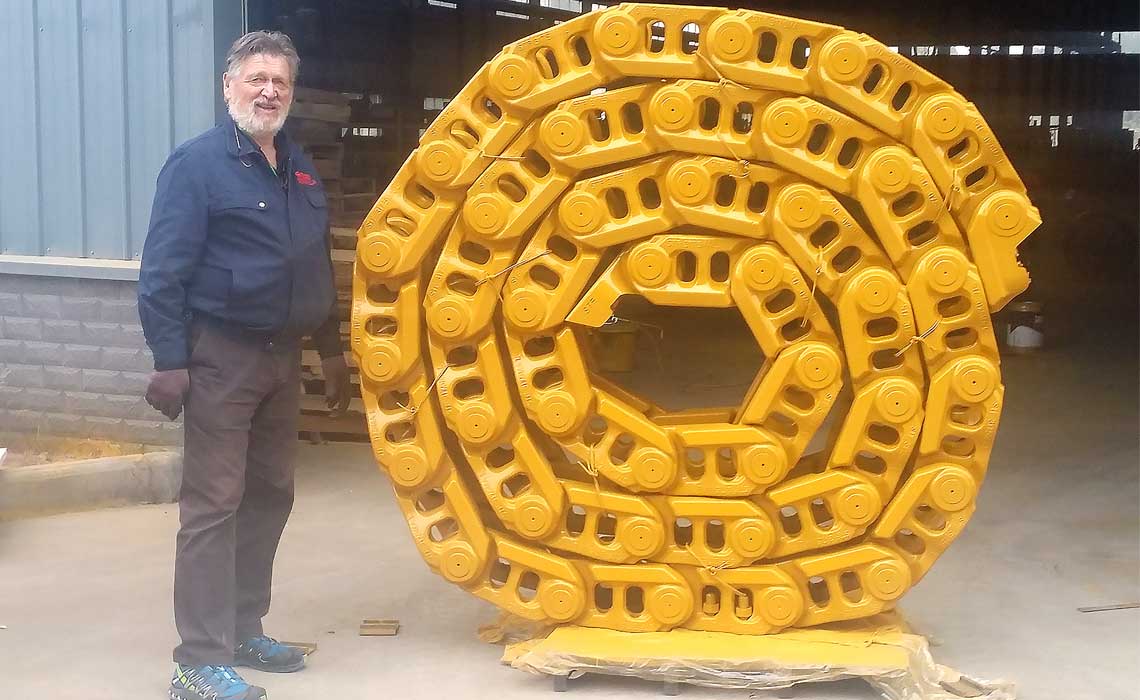

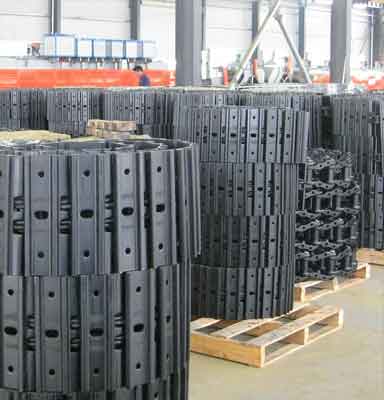

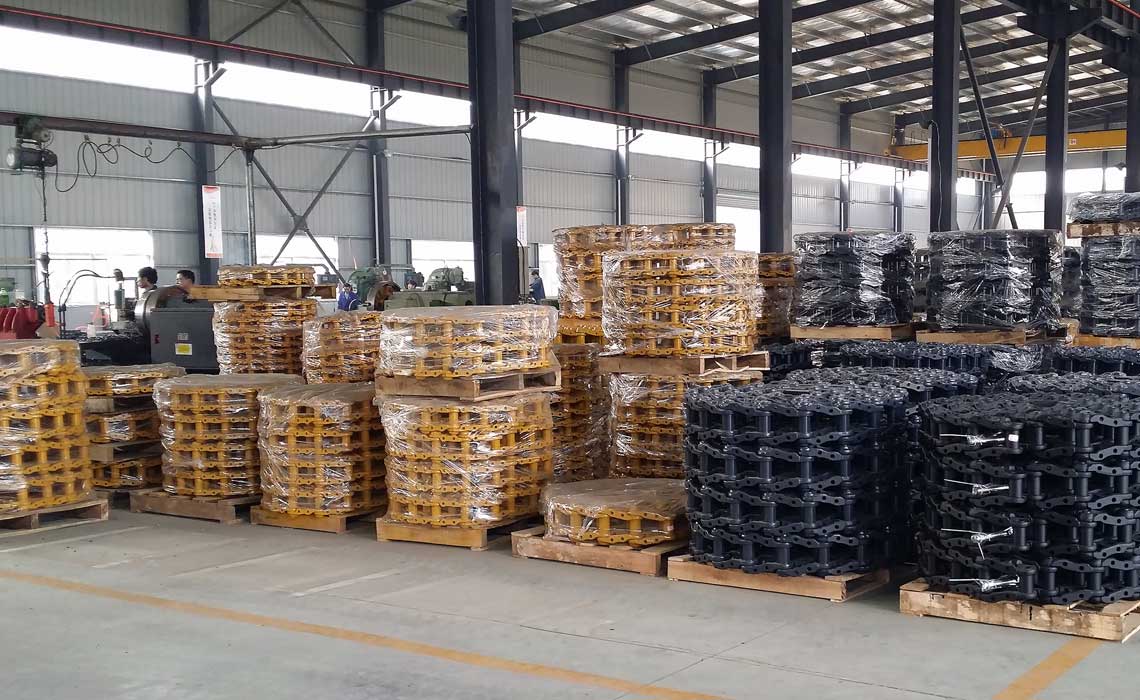

Track Groups

Track groups are manufactured to suit the smallest chained machines through to 30 ton machines. (Groups to 80 tons have been fabricated for the Asian market). Santer's sealed grease lubricated chains have design features to set them apart from competitors. All KMF and STF chains are forged from boron steels to give longer chain life. Excavator track is warranted for 2000 hours / 12 months. Lijing nuts are used on all groups.

Sprockets & Segments

KMF produces a range of sprockets to suit machines up to 120 tons. Its forged segments are made for bulldozers and other large tracked machines. Segments are made to suit most popular machines.

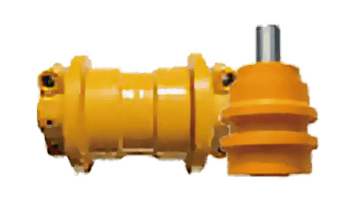

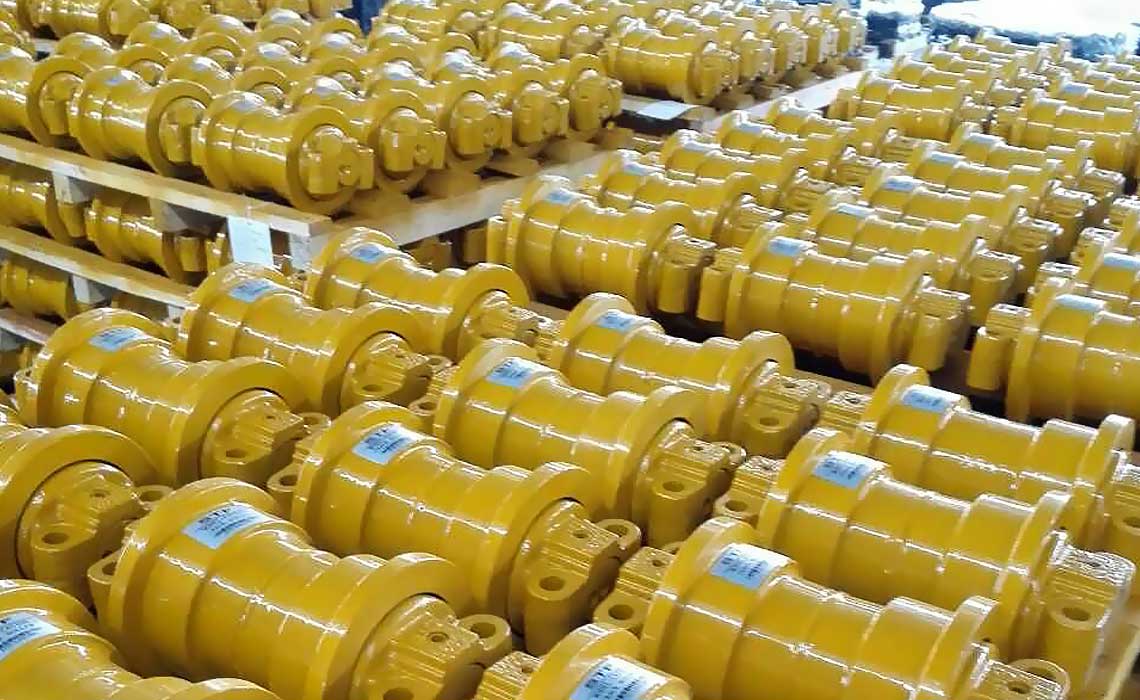

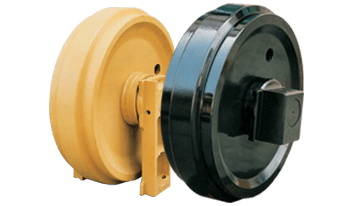

Rollers & Idlers

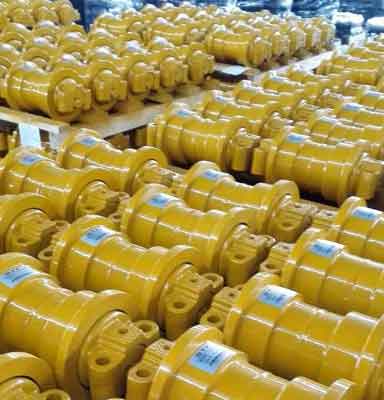

KMF forged roller range is tougher and more durable than cast equivalents. Rollers are available up to 120 tons.

Our Popular

Product Range

EXCAVATOR & BULLDOZER TRACK LINKS / CHAINS

Detailed parameters
Precisely forged with 35MnBM alloy steel as per OEM specification.

Advanced heat treatment for excellent wear and fatigue resistance.

All links have passed a magnetic particle inspection according to ISO9712 standard.

All Excavator Tracks Come With 12 Months/2000 Hours Warranty.^

All Bulldozer Sealed & Greased Lubricated Tracks Come With 12 Months/800 Hours Warranty.^

Komatsu
PC20/30 PC40/45/50 PC60/70 PC100/120/130/135 PC200/220 PC300 PC350 PC400 PC650 PC800 PC1000

Komatsu Dozer (Sealed & Greased Lubricated Tracks)
D20 D30/31 D40 D50 D60/65 D80/85 D155 D355

Hitachi
EX30 EX40 EX/ZX60 EX100 EX/ZX110/120/130/135 EX/ZX200 EX/ZX220 EX300 EX400 EX875 EX1100

Kobelco
SK30 SK40 SK60 SK70/75 SK120/130/135 SK200/210/220 SK330 SK450/460/480

Caterpillar
E70B CAT100/120/312/313/315 CAT307 CAT308 CAT320 CAT325 CAT330 CAT 345 CAT350 CAT385 CAT450 E200B E300B

Caterpillar Dozer (Sealed & Greased Lubricated Tracks)
D4D D6D D6H D6R D7G D8N D9H D9R D10N

Hyundai
R55 R200 R210 R290

Kato
HD250/307/308 HD500/512/513/550 HD700/800/900 HD820/1023 HD1250/1430

Sumitomo
SH55 SH60 SH75 SH100/120/130/135 SH200/220 SH300 SH350 SH450

Daewoo
DH55 DH130 DH220 DH300 DH500

^Whichever occurs first from the date of delivery. Terms & conditions apply.

EXCAVATOR & BULLDOZER TRACK GROUPS

Detailed parameters
Precisely forged with 35MnBM alloy steel as per OEM specification.

Advanced heat treatment for excellent wear and fatigue resistance.

All links have passed a magnetic particle inspection according to ISO9712 standard.

All Excavator Tracks Come With 12 Months/2000 Hours Warranty.^

All Bulldozer Tracks Come With 12 Months/800 Hours Warranty.^

Komatsu
PC20/30 PC40/45/50 PC60/70 PC100/120/130/135 PC200/220 PC300 PC350 PC400 PC650 PC800 PC1000

Komatsu Dozer
D20 D30/31 D40 D50 D60/65 D80/85 D155 D355

Hitachi
EX30 EX40 EX/ZX60 EX100 EX/ZX120 EX/ZX200 EX/ZX220 EX300 EX400 EX875 EX1100

Kobelco
SK30 SK40 SK60 SK120/130/135 SK200/220 SK330 SK450

Caterpillar
E70B CAT100 CAT120 CAT307 CAT308 CAT312/313 CAT320 CAT325 CAT330 CAT 345 CAT350 CAT385 CAT450 E200B E300B

Caterpillar Dozer
D4D D6D D6H D6R D7G D8N D9H D9R D10N

Hyundai
R55 R200 R210 R290

Kato
HD250/307/308 HD700/800/900 HD820/1023 HD1250/1430

Sumitomo
SH55 SH60 SH75 SH100 SH120 SH200 SH300 SH350 SH450

Daewoo
DH55 DH130 DH220 DH300 DH500

^Whichever occurs first from the date of delivery. Terms & conditions apply.

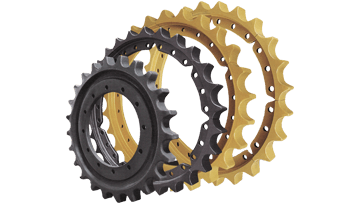

EXCAVATOR SPROCKETS & BULLDOZER SPROCKET SEGMENTS

Detailed parameters
Cast steel sprockets.

Forged steel sprocket segments.

Strong abrasion resistance quality ensuring smooth interlock with bushing of track links even after extended usage.

SPROCKETS
Komatsu
PC20/30 PC40/45/50 PC60/70/75 PC100/120/130/135 PC200/220 PC300 PC350 PC400 PC650 PC800

Hitachi
EX30 EX40 EX/ZX60 EX100 EX/ZX120 EX/ZX200 / 220 EX/ZX300 EX/ZX400 EX/ZX800/875 EX1200

Caterpillar
E70/75/CAT307/308 CAT100/120/312/313 CAT320/E200B CAT325 E300B CAT330 CAT345 CAT350 CAT385 CAT450

Kobelco
SK30 SK40 SK60 SK70/75 SK120/130/135 SK200/220 SK330 SK450

Sumitomo
SH55 SH60 SH75 SH100 SH120/130/135 SH200 SH300 SH350 SH450

Kato
HD250/307/308 HD700/800/900 HD820/1023 HD1250/1430

SEGMENTS
Caterpillar
D3C D4D D5C D6C/D6D D6H D6R D7G D8K D8N D9H/9R D10N D10R

Komatsu
D20 D30/31 D40 D50 D60/65 D80/85 D155 D355

^Whichever occurs first from the date of delivery. Terms & conditions apply.

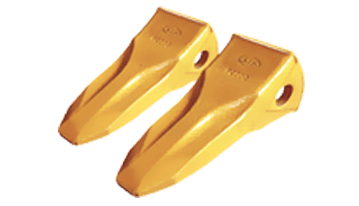

EXCAVATOR BUCKET TEETH

Detailed parameters
Precisely forged with 35MnBm alloy steel as per OEM specification.

Forged teeth have superior abrasion resistance quality resulting in longer working life.

These teeth are around 10 to 20 times more durable than cast teeth under similar usage.

Komatsu
PC100/120/130/135; PC200/220/230; PC300; PC350; PC400; PC650;

^Whichever occurs first from the date of delivery. Terms & conditions apply.

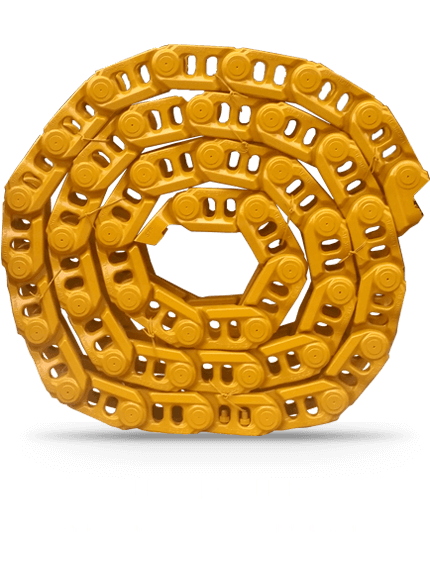

Unique Alternative To SALT

Santer sealed grease lubricated (SSGL) chain's unique design features to set them apart from competitors.

Unique Structure

SSGL chain's unique structure - air free grease filled brush provides long-lasting wearing.

Carburising Pin & Brush

Highly costing carburising hardening process is used to ensure precise thickness hardening surface layer on each pins and brushs.

Wide range sizes for wide range uses

SSGL chains availiable in full range sizes up to 317.5mm in pich (eg.D11R D375). Suitable for extreme weather condition and working envioment on both dozer and excavator.

WHO WE ARE

THE GROUP OF EXPERTS

Heavy Parts Group has an annual production capacity of 12,000 sets of chains and 20,000 rollers. The products are sold worldwide to many developed countries including USA, UK, Italy, Spain, Australia as well as developing countries in Southeast Asia, Middle East, South America, Africa and Oceania.

Huasheng Machinery

KMF Tracks chains & Track Groups

Web

Santer Machinery

STF Tracks chains & Track Groups

Web

Lijing Fastener

LJ Nuts & Bolts

KMF TRACKS

Huasheng Machinery

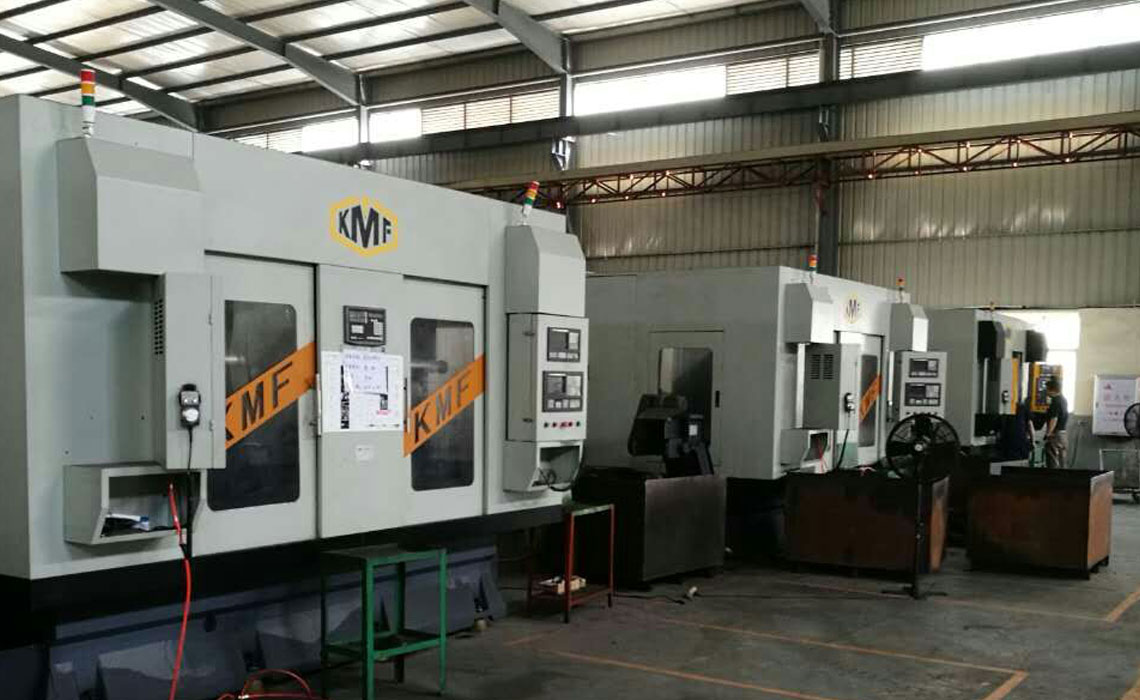

As a production-oriented enterprise engaged in forging, casting, machining, heat treating and fitting, Quanzhou Huamao Machinery Equipment Co.,Ltd (hereafter referred to as “KMF”) has always been committed to developing and manufacturing the undercarriage parts of various types of construction machinery and vehicles since its establishment in 2004.

Until now, the total investment of KMF has reached over 200 million RMB with the company holding more than 400 advanced processing equipments of all kinds and devoted to incorporating the procedures of development, production, sale and service. The products of KMF have been exported to more than 60 countries and regions of the world.

Fully equipped with living and recreation districts, KMF covers an area of 100,000 square meters with the floor space reaching 80,000 square meters. The company is always committed to creating a sound and well-regulated environment for both working and living.

Adhering to the philosophy of “Survival by High Quality, Benefit through Good Management”, our company always strives for setting up a team of high-level technical personnels and managerial talents. There are currently 500 people employed in KMF with a team of talents in the area of cutting-edge technology and management gradually taking shape, which has laid a solid foundation for the further development of both company and its products.Focusing on innovation, honesty and win-win results, people working in KMF have always pursued the achievement of high quality and innovation in products. We are looking forward to working with you to ultimately realize the win-win results in KMF.

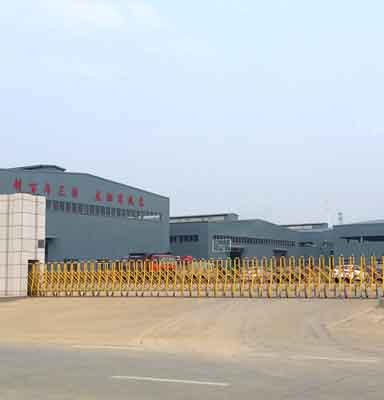

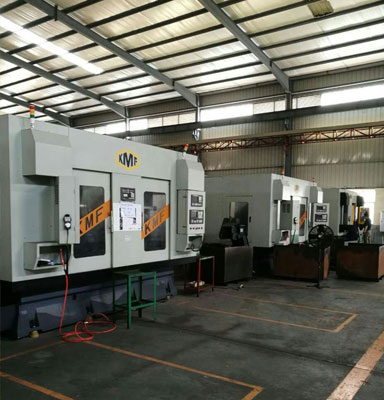

Huasheng Site

STF Tracks

Santer Machinery

Santer is a specialist steel forging, machining and heat treatment enterprise. STF is the brand range for crawler undercarriage parts. Santer has extensive experience and technical knowhow in using boron steel alloy. STF branded products range comprises chains, track groups, segments and sprockets which are imported into Australia.

Santer’s products are currently exported to over 20 counties. STF branded products have been sold in Victoria and NSW for the past 2 years. Santer is capable of producing chains to order and have produced chains with pitches up to 317.5mm. Undercarriage parts are available for most popular brands used in Australia.

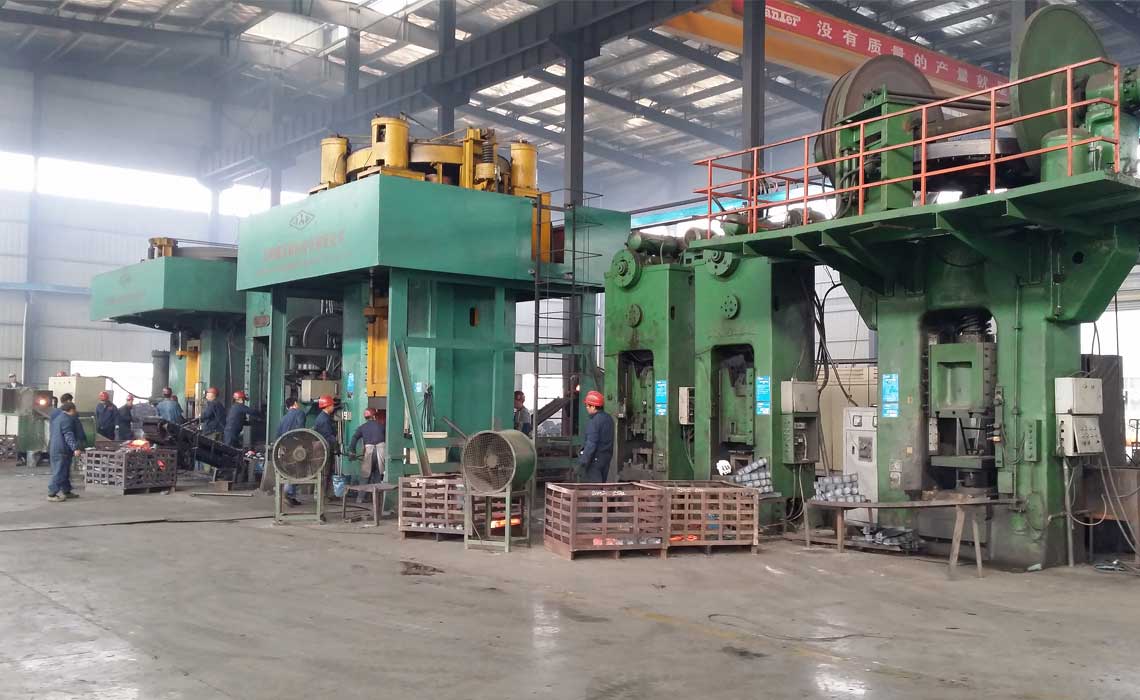

Santer Site

LJ Nuts & Bolts

Lijing Fastener

Lijing Group was founded in 1983. Over 30 years, Lijing has grown to have three major factory sites, covering 12 hectares. The company produces grade 10.9 – 12.9 high tensile nuts and bolts for heavy machinery.

Lijing has computerised production lines for intermediated frequency heating, forging assembly lines, automatic multi-duty cold forging machines, heat treatment lines and precise mold processing. Lijing has a world-class research and testing laboratory. They are equipped with spectral analyzers, multifunctional material testers, metallographic microscopes, magnetic particle flaw detectors and 3D scanners to ensure dimensional tolerances.

HPG exclusively uses LJ branded nuts and bolts in the assembly of their track groups.

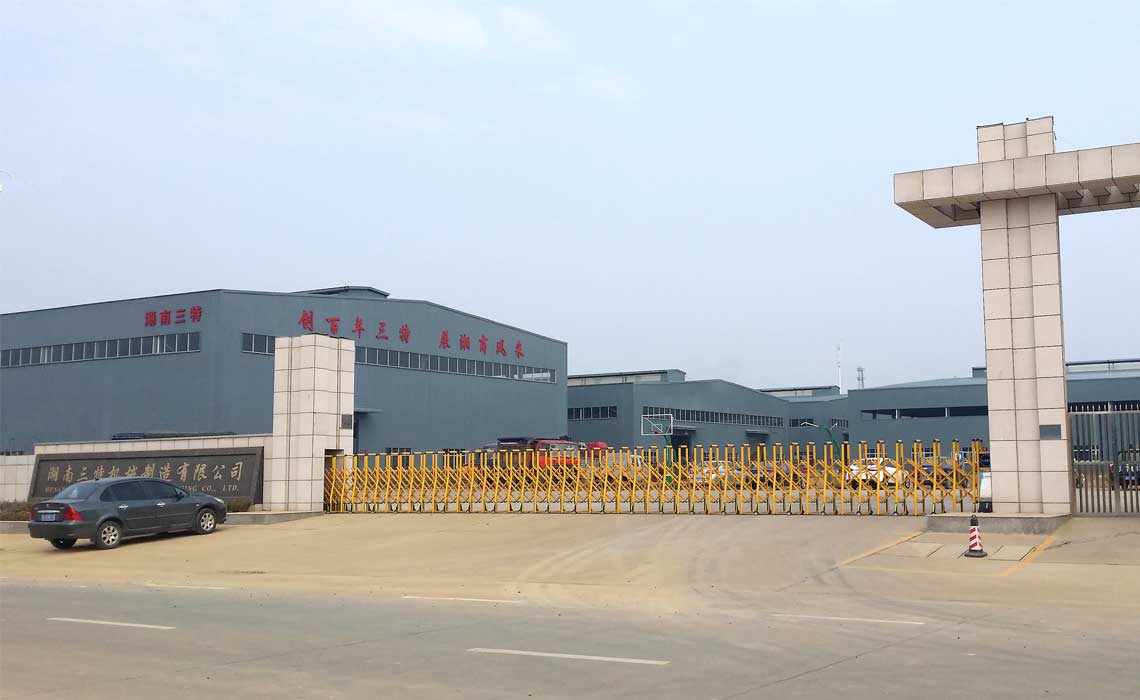

Lijing Site
